Load handling equipment – We also manufacture custom-made products according to customer specifications, including crane forks, lifting magnets, coil hooks, pipe hooks, S-hooks, sheet metal loading hooks, and much more.

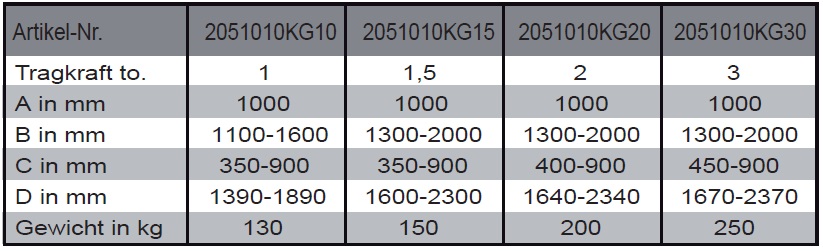

Crane fork with automatic load balancing, up to 3,000 kg
- Load capacities: 1,000/1,500/2,000/3,000 kg
- Automatic weight compensation (min. load: 50 kg)
- Adjustable tines
- Height adjustable
- Weight: approx. 130/150/200/250 kg

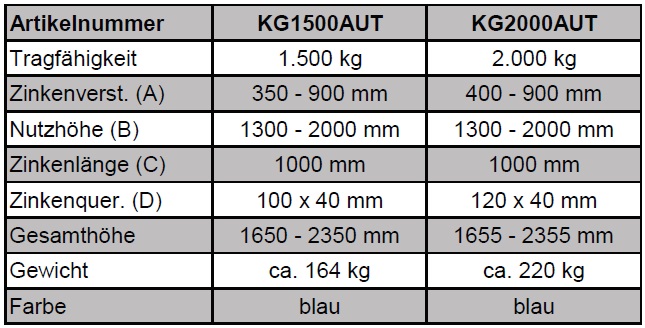

Crane fork with automatic load balancing, up to 2,000 kg
- Load capacities 1,500 kg and 2,000 kg
- Automatic weight compensation (min. load 50 kg)
- Adjustable tines
- Height adjustable
- Weight approx. 165 kg/220 kg
Lifting magnets
Lifting magnets from 100 kg – 6000 kg
HZT lifting magnets ensure greater safety, offering a variety of advantages for their use in toolmaking, steel construction, material storage, and more:
- Virtually wear-free thanks to high-quality materials
- High performance with compact dimensions
- Low weight
- Magnet body fully nickel-plated
- TÜV-tested safety at an affordable price
- Suitable for flat and round materials
- Can be used horizontally and vertically
Load lifting magnet premium up to 2 tons.
Lifting magnet standard up to 6 tons.
MCBULL lifting magnet up to 3 tons.

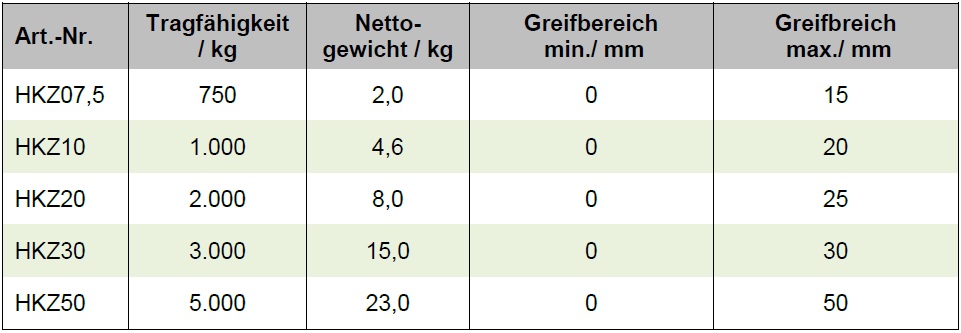

Robust and cost-effective lifting clamps for sheet metal
HZT Lifting Clamp: Robust and Affordable
- For safely lifting and turning sheets, profiles, and beams
- Specially hardened gripping jaws
- Safety lock prevents accidental opening of the sheet metal gripper
- Easy attachment of the lifting clamp thanks to the hold-open device
- For safely lifting and turning sheets, profiles, and beams
- Specially hardened gripping jaws
- With 45° swivel eyelet including universal joint for secure hold under lateral loads or diagonal pulls
- Easy attachment thanks to the hold-open device
Coil Hook
Some features of our Coil Hook:
- Our C-hook makes it easy to lift and transport circular loads such as sheet metal coils, pipe sections, wire, and cable coils.
- Practical handles ensure safe and easy handling.
- The suspension is compatible with load hooks according to DIN 15401.
- Standard finish: Yellow (RAL 1021) with an alkyd resin base.
- A 3/4-prong version is also available.
- Custom designs are also possible!
S-Hook
Some features of our S-Hook:
- S-hooks with safety catch (please inquire)
- Available from 4 mm diameter
- Long S-hooks
- Short S-hooks
- S-hooks with closed eye
We manufacture custom hooks according to customer specifications.
The customer can specify the shape or application, and our HZT team will then calculate, design, and manufacture the hooks according to your specifications.
Sheet Metal Loading Hooks
Some key features of our sheet metal loading hooks:
- Sheet Metal Loading Hook, Spread Design: High-strength, with a ribbed contact surface and red paint finish. Available with a B-link upon request.
- Sheet Metal Loading Hook, Simple Design: High-strength, stamped, with a red paint finish. Available with a handle and B-link upon request.
We also manufacture sheet metal loading hooks according to customer specifications.
Our expertise allows us to produce special sheet metal loading hooks that can be reconditioned after wear, significantly reducing costs for our customers.
Please contact us for more information.
Didn’t find the product you were looking for? We have other products in stock! Just give us a call or send us a message.
Special Solutions
Then contact us. Our engineers and technicians will help you solve your problems and create a custom solution for you!
Extra-long or extra-short crane forks? No problem for HZT. Coil hooks, pipe transport hooks, or sheet metal loading hooks – we also manufacture these according to your specifications.
