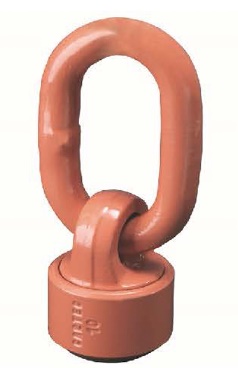

Swivel eyebolt GK10 weldable
Weld-on Swivel Lifting Eye
- Grade 10
- Rotates 360°
- Eye self-aligns 180°
- Ball bearing for easy load alignment
- Safety factor: 4
(in all directions of the load)
Anschlagwirbel GK10 schweißbar

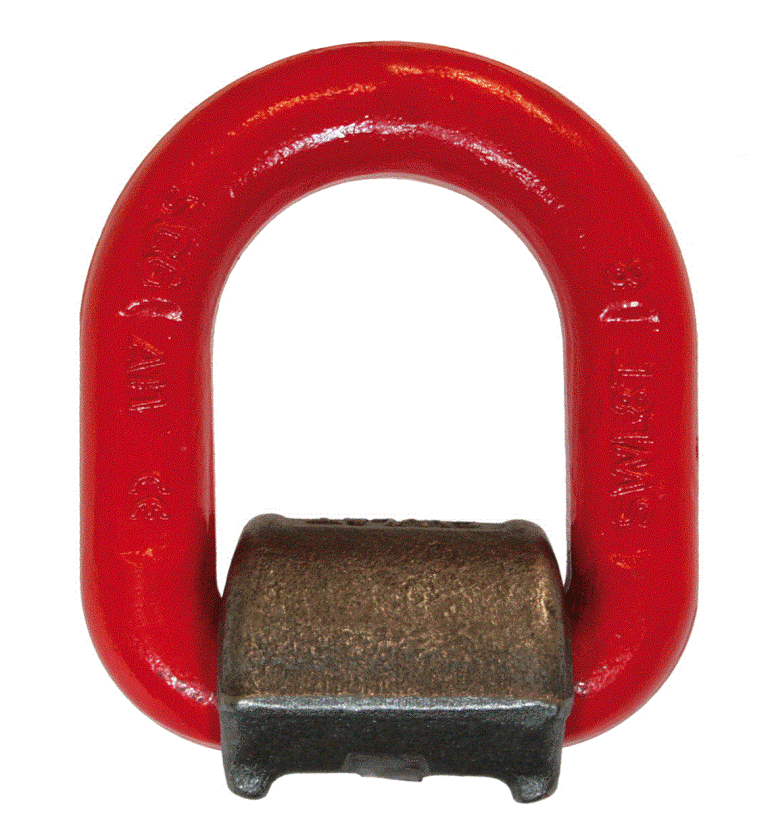

Weldable Anchor Points
- Load capacity up to 15,000 kg
- Bail swivels 180°
- Optionally available with a spring for locking the bolt
- Welding instructions included
Anschlagpunkte schweißbar

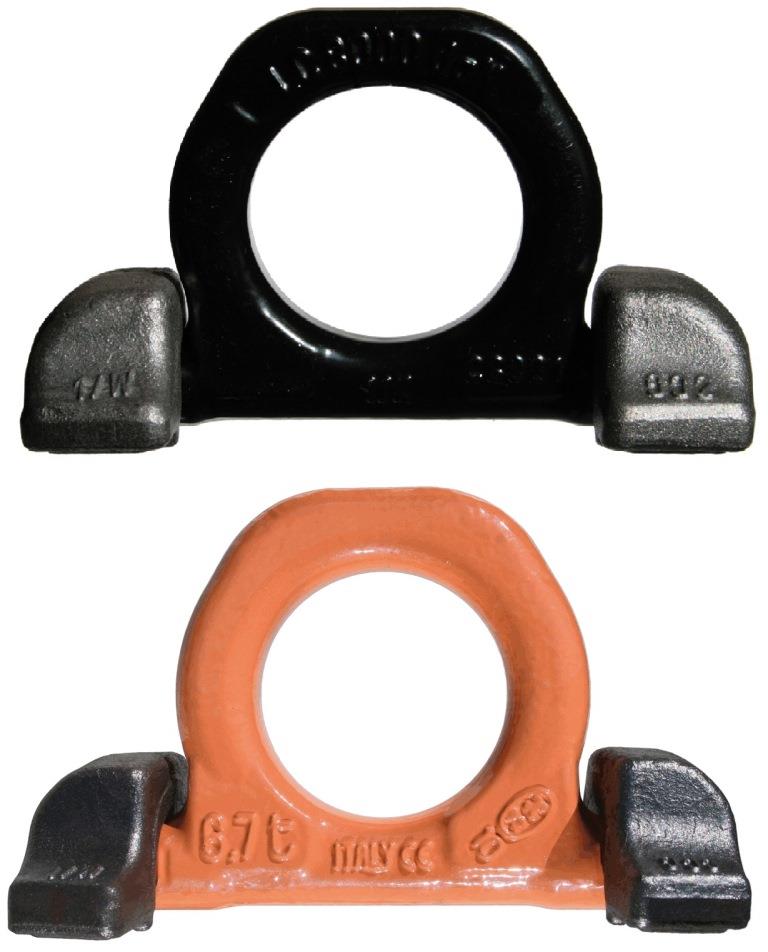

Lifting Ring GK 10
- Type: Welding Lifting Ring
- Grade: 10
- Applications:
- For lifting
- For lashing
- Load Capacity: Up to 32,000 kg
- Lashing Force (LC): Up to 32,000 daN
- Bail Rotation: Swivels 180°
- Welding Instructions: Included
Ringbock GK 10

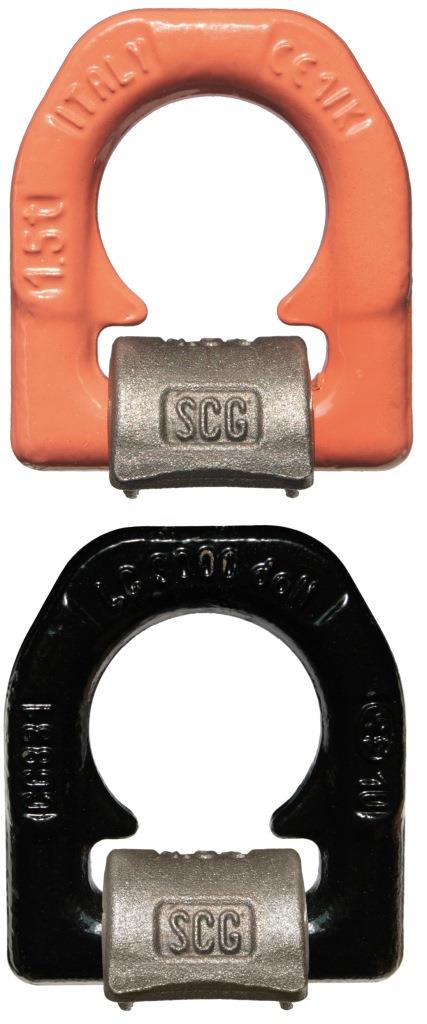

Welding Stand GK 10
- Type: Welding Stand
- Grade: 10
- Applications:
- For lifting
- For lashing
- Bail Rotation: Pivots 180°
- Load Capacity: Up to 16,000 kg
- Lashing Force (LC): Up to 32,000 daN
- Welding Instructions: Included
Schweißbock GK 10

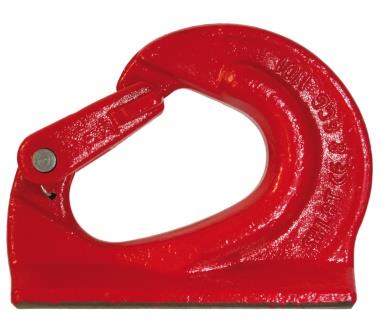

Weld-on Hook
- Load Capacity: Up to 10,000 kg
- Safety Latch: Included
- Finish: Painted
- Welding Instructions: Included
Anschweißhaken

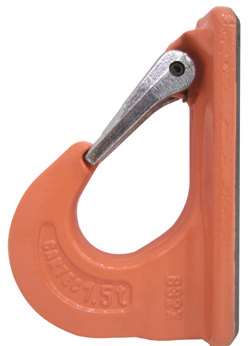

Weld-on Hook GK10
- Load Capacity: Up to 6,700 kg
- Safety Latch: Included
- Finish: Painted
- Welding Instructions: Included
- Grade: 10
Anschweißhaken GK10
Product video lifting points (weldable)
HZT lifting points in grades 8 and 10 comply with the latest safety standards and guidelines.
Our lifting points are available in both screwable and weldable models, depending on the design.
All HZT lifting points feature an H stamp for quality assurance.
Load Capacities: From 300 kg up to 50,000 kg (50 t)
Eyelet: Pivots 180° and is self-aligning
Safety: 4:1
Certifications: Test certificates and declarations of conformity are included as standard.
